Specs

Heritage

The name "Irie" is colloquial/slang in Jamaican for good, allright, cool, with a deeper meaning of feeling of content and at peace with oneself and one's state of being.

Irie is a Tahitiana, a Weston Farmer's reimagining for John G. Hanna's classic Tahiti ketch. Irie was built in 1984, is cutter rigged, rolled steel construction (no chine) and is a 110% upscale of the original plans, incresing her to a 33'.


1893  RS1               - Colin Archer
1935  ├── Tahiti        - John G. "Jack" Hanna
1952  │   ├── Oceania   - Alan Mason
1976  │   └── Tahitiana - Weston Farmer
1938  ├── Ingrid 38     - William Atkin, Colin Archer
1977  └── Westsail 32   - William Atkin, William Crealock, and Colin Archer

Hull constructed by Sinclair Melbourne & Co. in Lyttleton, a ship building and engineering company which began in 1927 and dissolved in 2000.

An old photo of Sinclair Melbourne Co. office, before it became a big ship building yard.

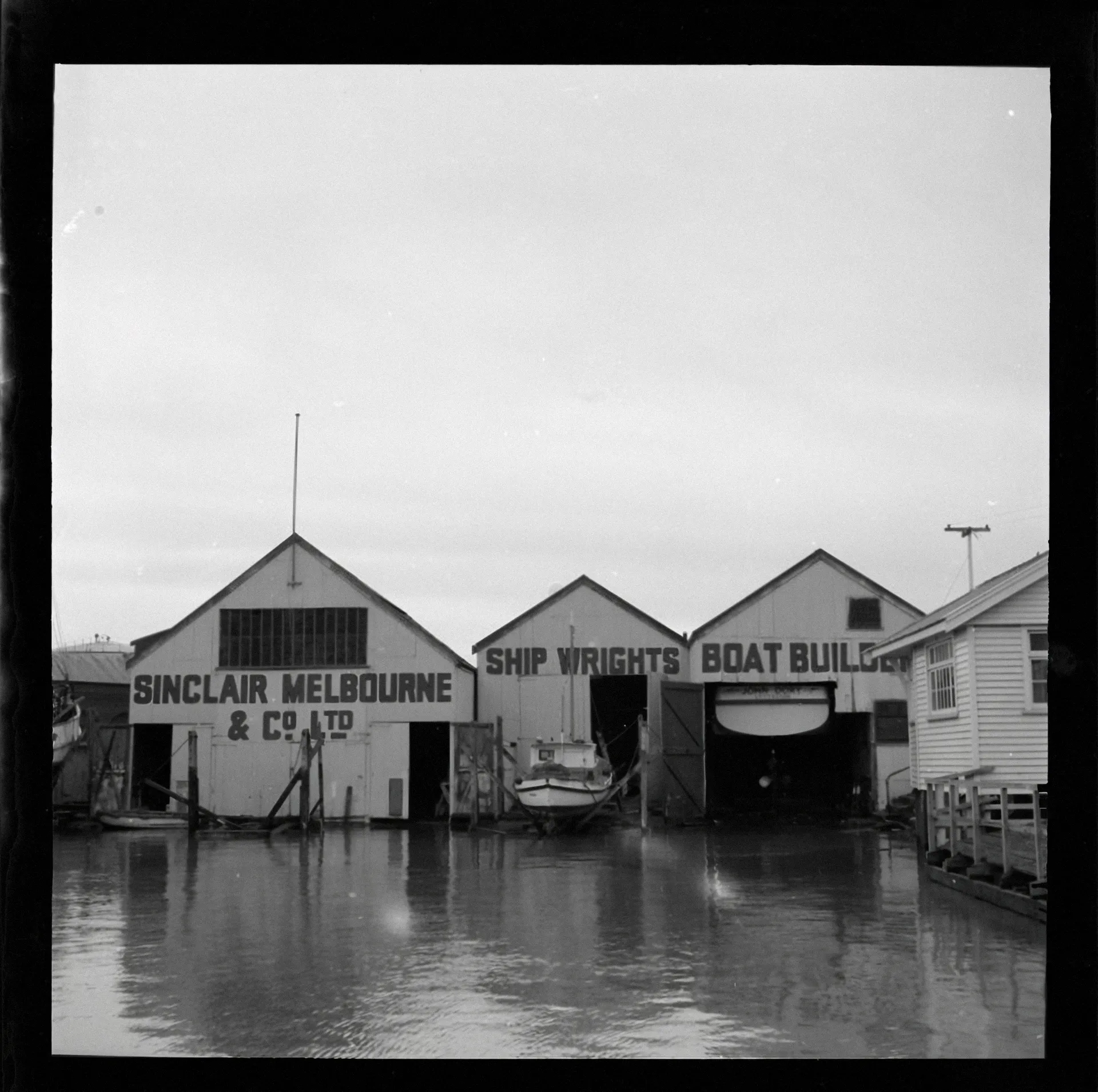

View of the bSingclair Medlbourne Co. Boat ramp, 22 June 1963

Hull

Measurements
LWL 30'0"
LOA 37'6"
Beam 11'4"
Draft 4'4"
Displacement 24000 lbs
Ballast 6000 lbs
Capsize Ratio 1.56
Comfort Ratio 45.18
Steel Plate
Hull 1/4”
Deck 1/8”
Keel 1/2”

Zinc

305x150x13 ZHC-10
4kg * 4
23lb/12kg

Drive

Fuel 80L keel + 50L header Shaft 1,1/4"
Stern tube 2,1/4 (58mm)
Engine mount studs 16mm

Rig

Mast
Top of mast to upper spreader 11'10.5”
Top of mast to bottom 41'7”
Top spreader (mid) ??? 28'2”
Bottom spreader 16'2”
Boom 15'6”
Wire
Forestay 42'9”
Inner forestay 29'7”
Intermediate 29'8.5”
Aft lower 17'10.5”
Forward lower 17'8”
Bobstay (eye to eye) 4'8”
Jib sheet sheeve 1/2”

Sail

Sail Luff Leach Foot SQR FT
MAIN 36'1” (433”) 37'10”(454”) 14'10” (178”) 266.57
- Reef #1 33'1” (397”) 34'8” (416”) 14' (168”) 230.51
- Reef #2 29'7” (355”) 31'1” (373”) 12'10” (154”) 188.86
- Reef #3 24'2” (290”) 25'4” (304”) 10'10” (130”) 130.02
GENOA 39' (468”) 35'10” (430”) 21'8” (260”) 383.85
YANKEE 38'7” (463”) 26' 7” (319”) 19'2” (230”) 233
STORM JIB 18'6” (222”) 14'9” (177”) 9'5” (113”) 68.89
STAYSAIL 25'1” (301”) 22'9” (273”) 8'10” (106”) 100.09
TRYSAIL 14'10” (178”) 20'3” (243”) 11”10” (142”) 86.82

J distance = 184” (467.36cm)

Tackle

  • Rockna Vulcan 55lb
  • Danforth 55lb
  • Fortress FX23 7kg
  • Spare Plow 45lb

Appliances

Fridge 630L 310W 380D
Freezer 14L 24W 28D
Fresh Water Capacity 300L
